LED Fountain pool lights Not Working? Simple Steps to repair your light

August 13,2025.

We are a factory that has designed and produced LED fountain lamps for 15 years, with a stable engineering and sales team.Over the past 15 years, we have also encountered a problem that a small number of products may stop working after a few years of use.

Typically, these DMX or RDM lights are installed in fountains, pools, plazas, or artificial lakes. Therefore, if a product stops working, it is a huge undertaking to maintain them. The conventional method involves draining the pool or fountain, removing and opening the device's junction box, removing the defective unit, and then rewiring and replacing it with a new one. This task becomes unimaginable in an artificial lake.

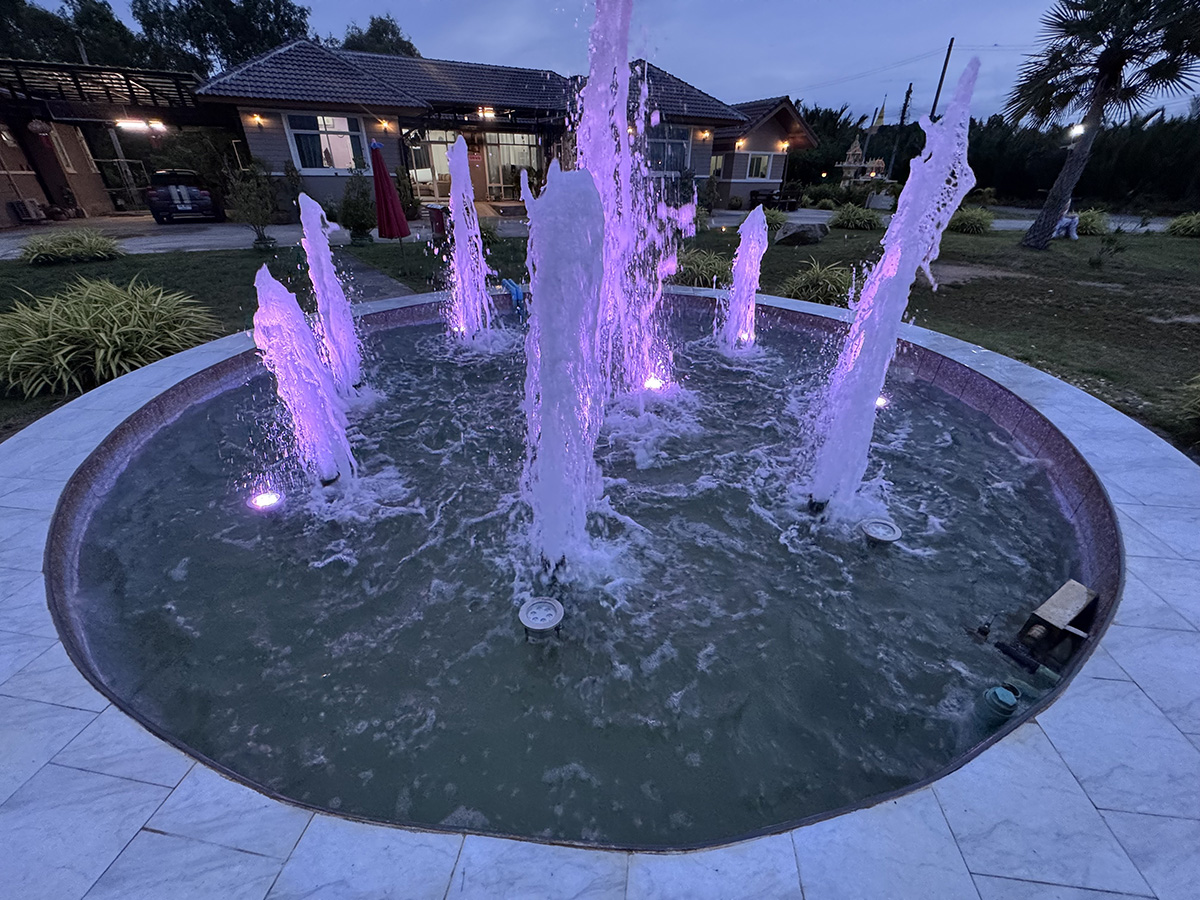

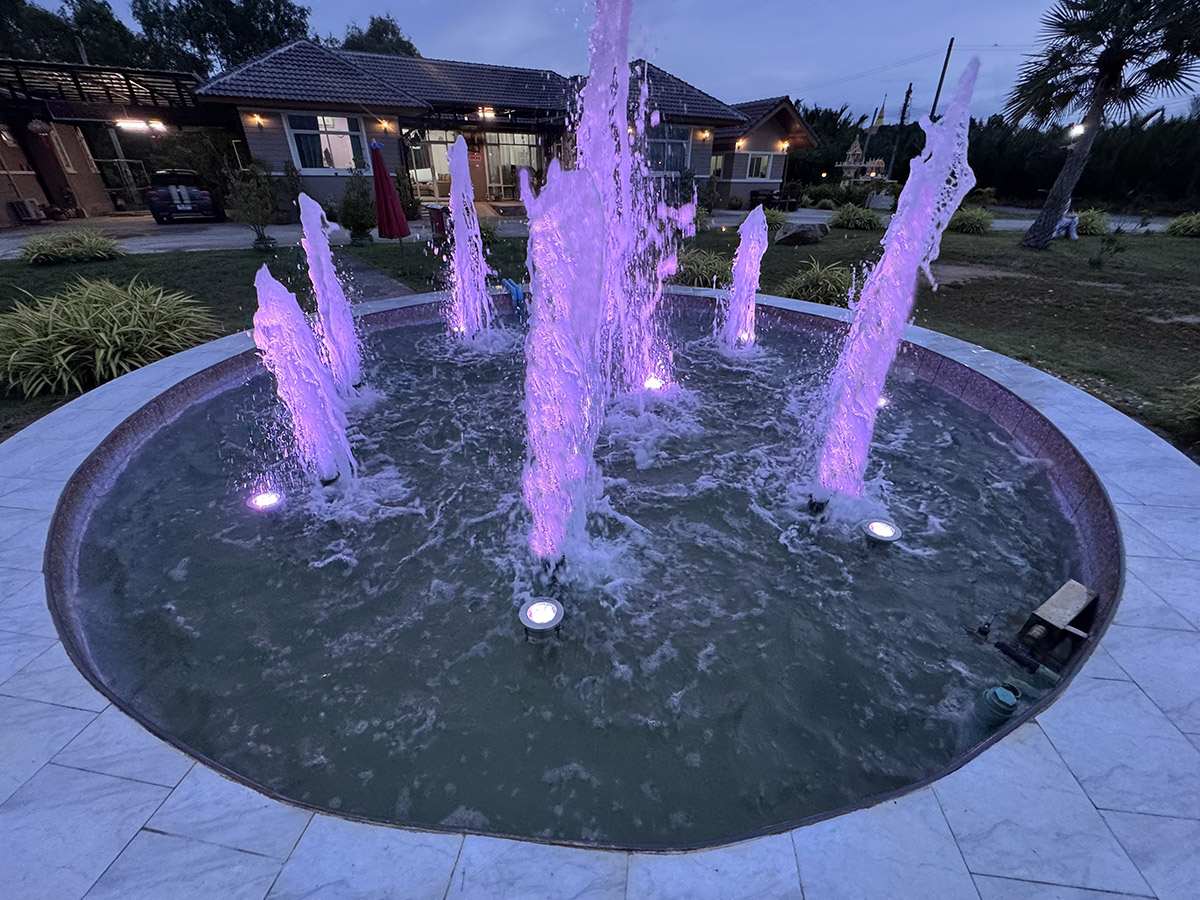

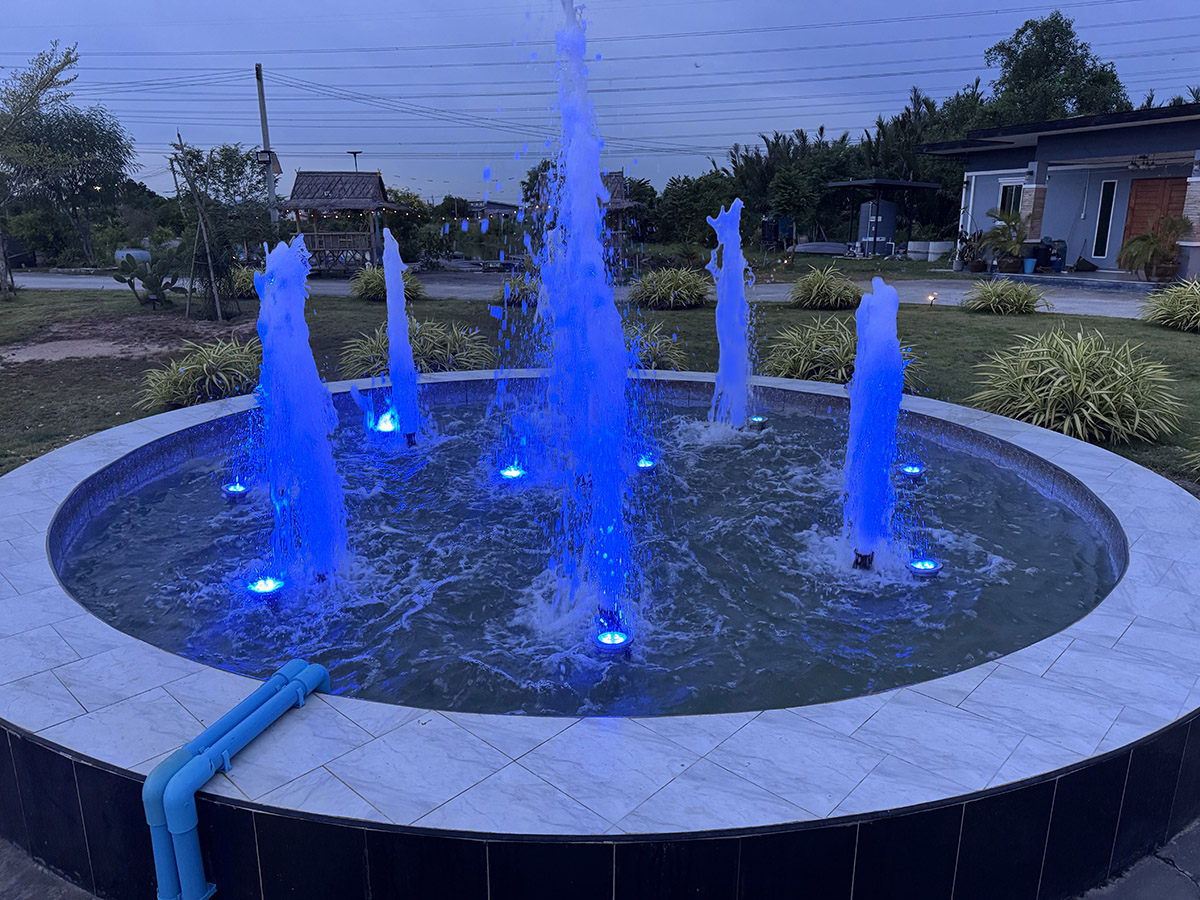

 For example, Have a look next pictures, which happened in a fountain pool,All cables from light to junction box have 10 meters. However, two units lights stopped work and you must replace them.

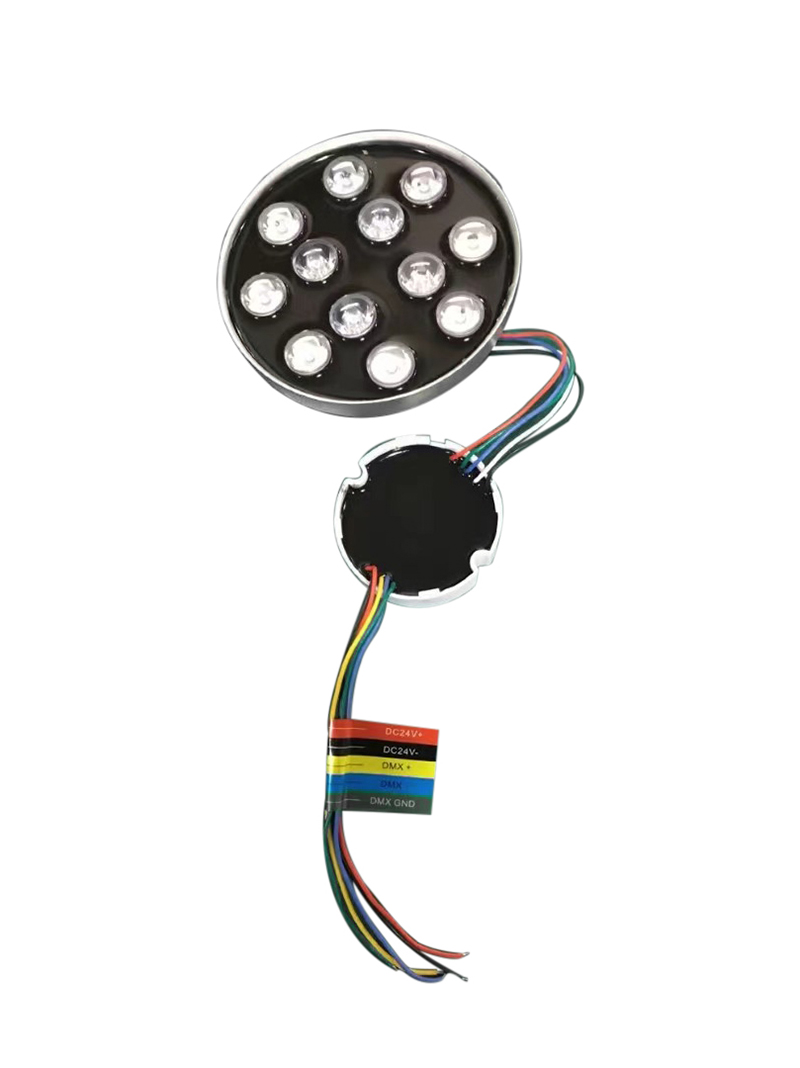

Our team has upgraded product design, which not only improves the waterproof quality of our products, but also helps customers optimize the repair process.All our products have waterproof designs for PCB and DMX/RDM decoders. The entire PCB is mounted in a 2.5mm thick aluminum bowl for improved heat dissipation, and the PCB is sealed with IP68-rated waterproof adhesive. Similarly, the DMX/RDM decoder is housed in a white plastic bowl, also sealed to IP68 standards. As the picture we did,


Therefore, no matter how complex the environment, maintenance personnel only need to remove the light from the Nozzle in Fountain, open the lamp cover, replace the LED PCB/decoder inside, and re-tighten the cover screws evenly. which basically completes the repair work. This eliminates the need to remove the waterproof box, reconnect the power and signal cables, or even drain the water of pool.

By following a few simple steps, the fountain light can be restored to its original state.


Furthermore, for lights beyond their warranty, repair costs are minimal. Customers only need to re-purchase the PCB and DMX/RDM decoders, and several waterproof gaskets (screws are provided free of charge). Compare with purchase finished lights, Purchase cost and expensive international shipping costs can be saved, as the PCB/decoders has so light weight.
